The Bluetooth book
It won't pair.
It sends garbage.
It won't talk to your iPhone.
Every way an Arduino Bluetooth link fails, why it fails, and the fix — for HC-05, HC-06, HM-10 and the clones sold under all three names, and the ESP32. A 277-page second edition, written to be opened in the middle, at the moment something stopped working.
There are two ways to buy it. The difference is whether you want the thing on your bench working, or want to build something with it.
Pick one
Two ways in
The book
$15
The second edition: a 277-page colour PDF and an EPUB. A symptom index, five parts, a fix encyclopedia, and every claim labelled with how it was checked.
Buy this if…
- · Something is already wired and it doesn’t work
- · You own an HC-05 or HC-06 and want it talking
- · You want the diagnosis, not a project
The book and the build
$12 · half price, first 100
The same book, plus the eight-lesson course that builds a car you drive from your phone. Graded, with quizzes, an exam and a certificate. $24 after the first 100.
Buy this if…
- · You want to end up with something that drives
- · You’re starting from nothing and want the parts list
- · You want the certificate and the badges
The book is identical in both. The pair adds the course on top of it, and is cheaper than buying them separately later.

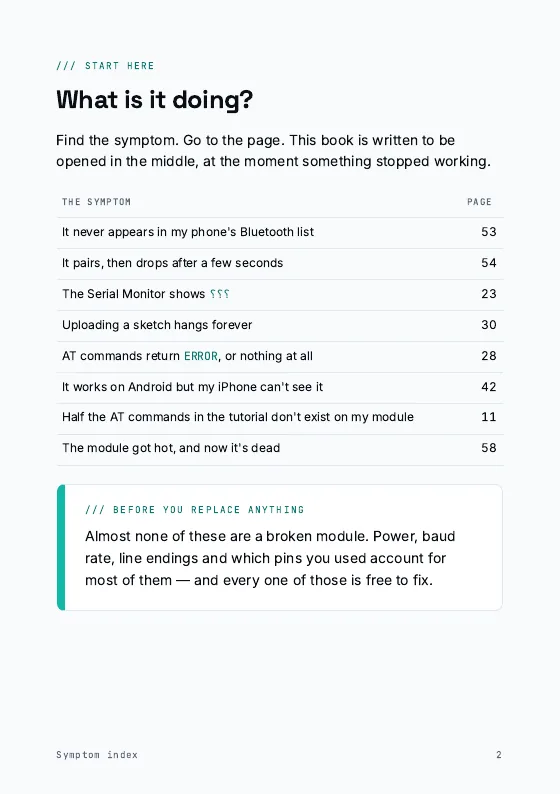

Is this you?
Eight ways it goes wrong
- It never appears in my phone’s Bluetooth list
- It pairs, then drops after a few seconds
- The Serial Monitor shows ⸮⸮⸮
- Uploading a sketch hangs forever
- AT commands return ERROR, or nothing at all
- It works on Android but my iPhone can’t see it
- Half the AT commands in the tutorial don’t exist on my module
- The module got hot, and now it’s dead
Almost none of these are a broken module. Power, baud rate, line endings and which pins you used account for most of them — and every one of those is free to fix once you know which it is. That is what the book is for, and it is the same book either way.
Before you buy
The part most pages leave out
If you own an HC-05 or HC-06, the book covers you completely — that is what it was written for.
The phone-as-a-remote part of the course is different: it needs a BLE module (HM-10) and a Chromium browser, because Web Bluetooth has never shipped in Safari on any Apple platform. That is a purchase, not a fix, and it is said here rather than after your money.
What you are buying
A diagnosis, not a tutorial
There is no shortage of free Arduino Bluetooth tutorials, and most of them work — right up until yours doesn’t. Then you are reading six of them at once, each confident, each contradicting the last, and none of them written for the state your bench is actually in. The one that told you to use 9600 doesn’t mention that your module ships at 38400. The one with the wiring photo is using a different module to the one in your hand, sold under the same three letters.
That is the gap this book was written into. It does not start from first principles and it does not start with a project. It starts from the symptom — the thing your bench is doing right now — and works backwards to the cause, then tells you the fix and how to prove it worked. The theory (Part 2) and the projects (Part 4) are there for after it works. Four boxes: your phone, the module, the Arduino, and the thing you want to move. Almost every failure lives in exactly one of them, and most of an evening is lost to not knowing which.

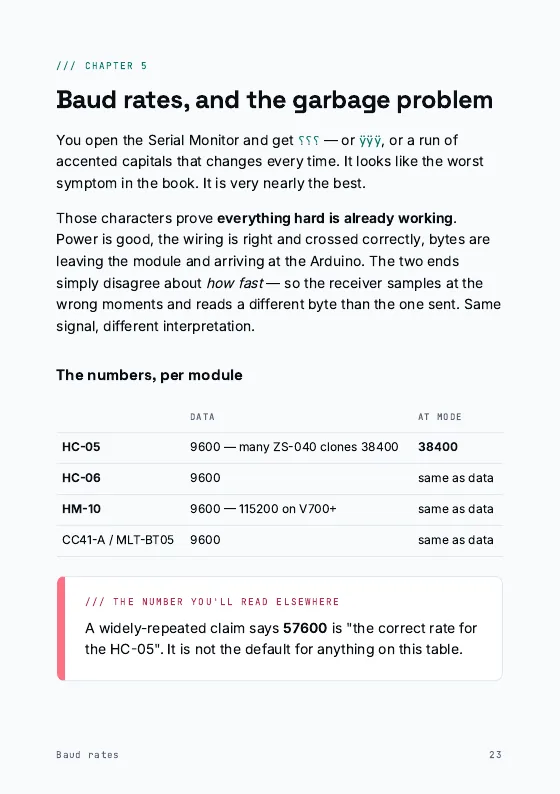

The numbers are checked against datasheets rather than against other tutorials, which matters more than it sounds: the most repeated baud rate for the HC-05 on the open web is simply wrong for a large share of the modules being sold, and it has been copied between articles for years. Every figure is drawn from the circuit, not sketched from memory, so the pin in the diagram is the pin on your board.
The question underneath
You may not own the module you think you own

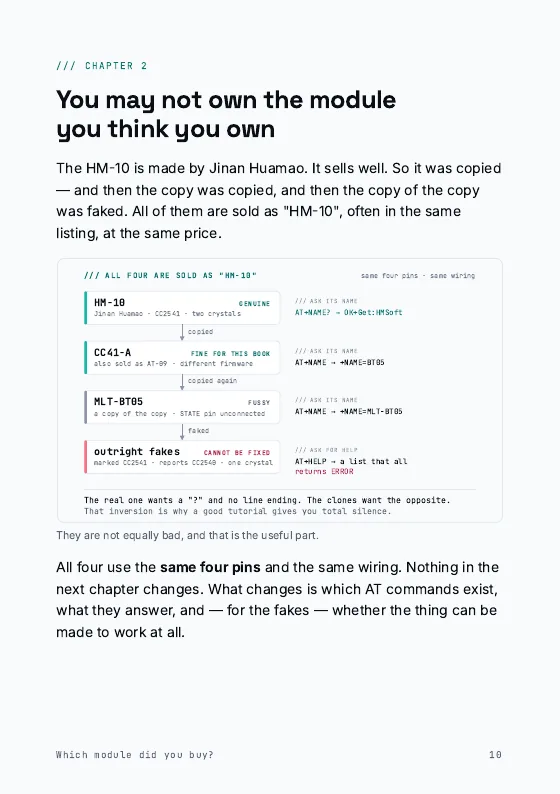

The single most useful page in the book is about naming. An HM-10 is a specific module from a specific manufacturer — and it has been copied, the copy has been copied, and the copy of the copy has been faked. All four are sold as “HM-10”, frequently in the same listing, at the same price. They share the same four pins and the same wiring, so the diagram you followed was right. What differs is which AT commands exist, what they answer, and whether the thing can be made to work at all.

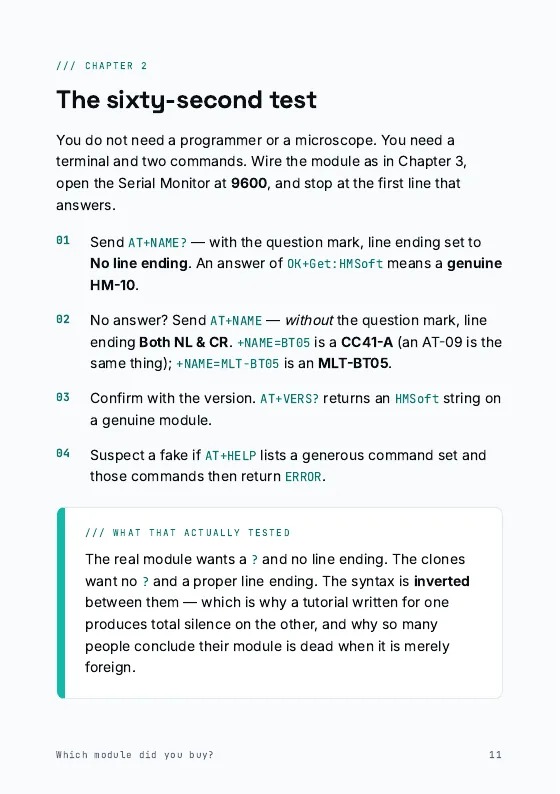

This is why generic advice fails so reliably. “Send AT+NAME” is good advice for one of those four and meaningless for another. The book gives you a sixty-second test — two commands — that names what is in your hand before you change a single setting, and a fix encyclopedia that maps every symptom to the test that distinguishes the causes. If you take nothing else from it, take that: identify the module first, and most of the contradictions on the internet resolve themselves.
The same question decides which of the two products above is right for you. The book covers all four modules for diagnosis. The phone-as-a-remote part of the course needs a BLE module specifically, which is the one caveat worth knowing before you spend anything — and it is why it is stated above rather than after the checkout.
Questions
Straight answers
- Which one should I buy?
- If something is already wired on your bench and you just need it to work, the book. If you want to end up with a car you drive from your phone — and a graded course with a certificate — the pair, which is $12 while the first 100 last.
- Is the book the same in both?
- Identical. The same 277-page PDF and EPUB, the same files. The pair adds the eight-lesson course, the quizzes, the exam and the certificate on top of it.
- Can I add the course later?
- Yes, but not at this price. The pair is $12 for the first 100 and $24 after, so buying the book now and the course later costs more than buying them together today.
- Do I need to buy hardware?
- For the book, no — it diagnoses what you already have. For the build, yes: about $80 of parts, every one named and priced inside the course before you commit.
Not sure yet? 30 pages are free, and the symptom index shows you exactly what the book covers.
Decide
So: fix it, or build with it?
You have read the whole thing, so here they are again rather than making you scroll back up. Same two products, same prices.
The book
$15
The second edition: a 277-page colour PDF and an EPUB. A symptom index, five parts, a fix encyclopedia, and every claim labelled with how it was checked.
Buy this if…
- · Something is already wired and it doesn’t work
- · You own an HC-05 or HC-06 and want it talking
- · You want the diagnosis, not a project
The book and the build
$12 · half price, first 100
The same book, plus the eight-lesson course that builds a car you drive from your phone. Graded, with quizzes, an exam and a certificate. $24 after the first 100.
Buy this if…
- · You want to end up with something that drives
- · You’re starting from nothing and want the parts list
- · You want the certificate and the badges
Either way you get the same 277-page book, and either way there is a 30-day refund and you keep it.
