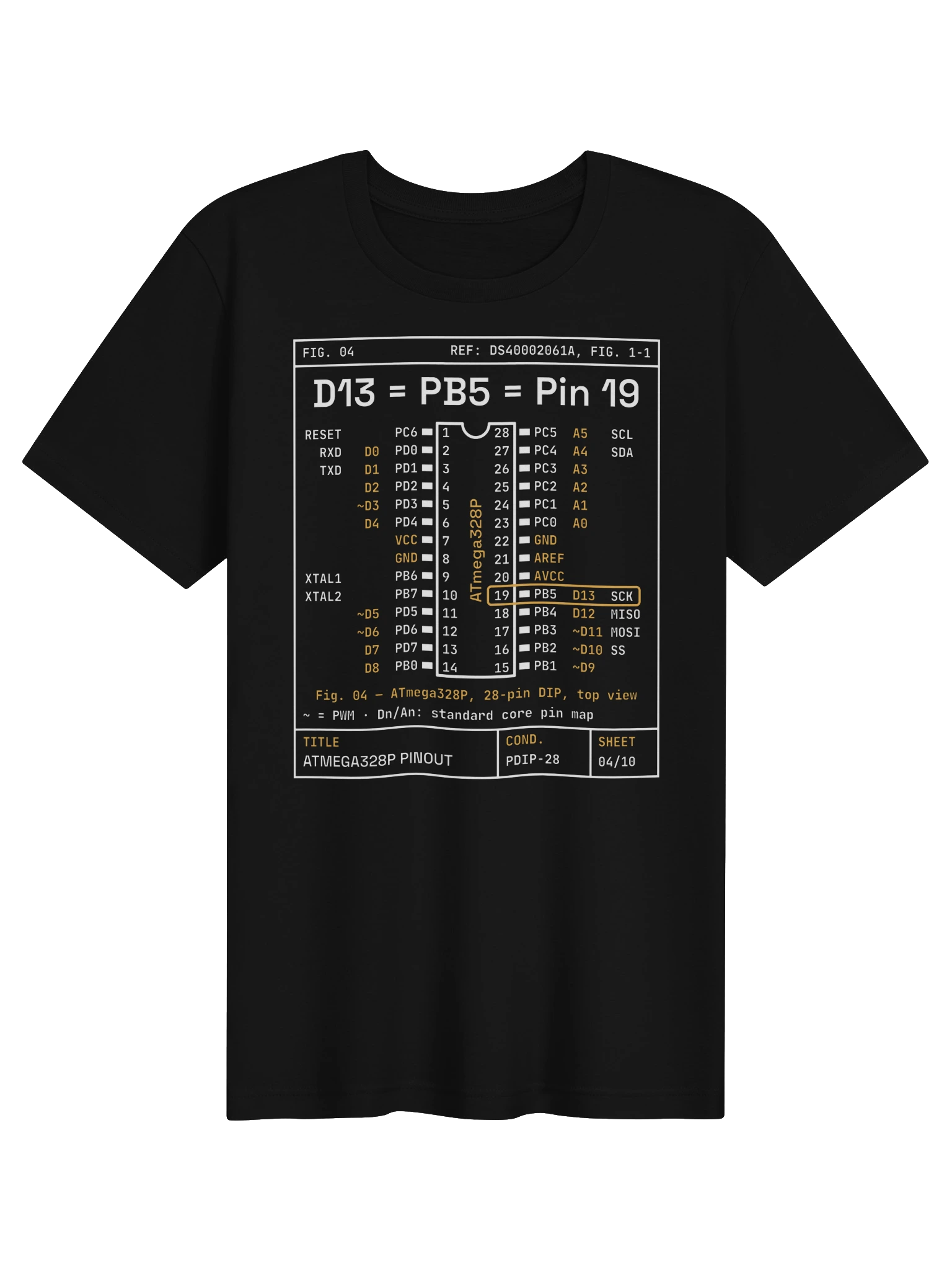

ATmega328P Pinout T-Shirt
“D13 = PB5 = Pin 19.”
A nerdy electronics tee: the ATmega328P 28-pin DIP, every pin with its port bit, the pin number you use in a sketch, PWM pins, power and the SPI, TWI and UART pins.
from $27
Plus shipping, shown at checkout. US sales tax included where it applies.
Checkout is run by Fourthwall, who print the shirt to order, ship it and handle returns and sales tax. You’ll pay on shop.troniction.com.
On the shirt
What it teaches
- The same pin has three names: physical pin 19 on the chip, port bit PB5 in the datasheet, and D13 in an Arduino sketch. Knowing all three is how you read a schematic against your code.
- Six pins can do hardware PWM, marked ~: D3, D5, D6, D9, D10 and D11.
- A0–A5 are port C (PC0–PC5, pins 23–28); A4 and A5 double as the TWI (I2C) bus, SDA and SCL.
- D10–D13 (PB2–PB5) are the SPI pins SS, MOSI, MISO and SCK; D0 and D1 (PD0, PD1) are the hardware UART, RXD and TXD.
- The chip has two power pairs: VCC/GND on pins 7–8 and AVCC/GND on pins 20 and 22, with AREF on pin 21 for the analog reference.
Sources
Where every fact comes from
The shirt
Fabric, fit and printing
Bella+Canvas 3001 unisex tee: combed and ring-spun cotton (heather colours are a cotton/poly blend), printed direct-to-garment and made to order. Care: wash cold, inside out; tumble dry low; don't iron the print.
