HC-05 Pinout T-Shirt
“Your RX Wants 3.3 V.”

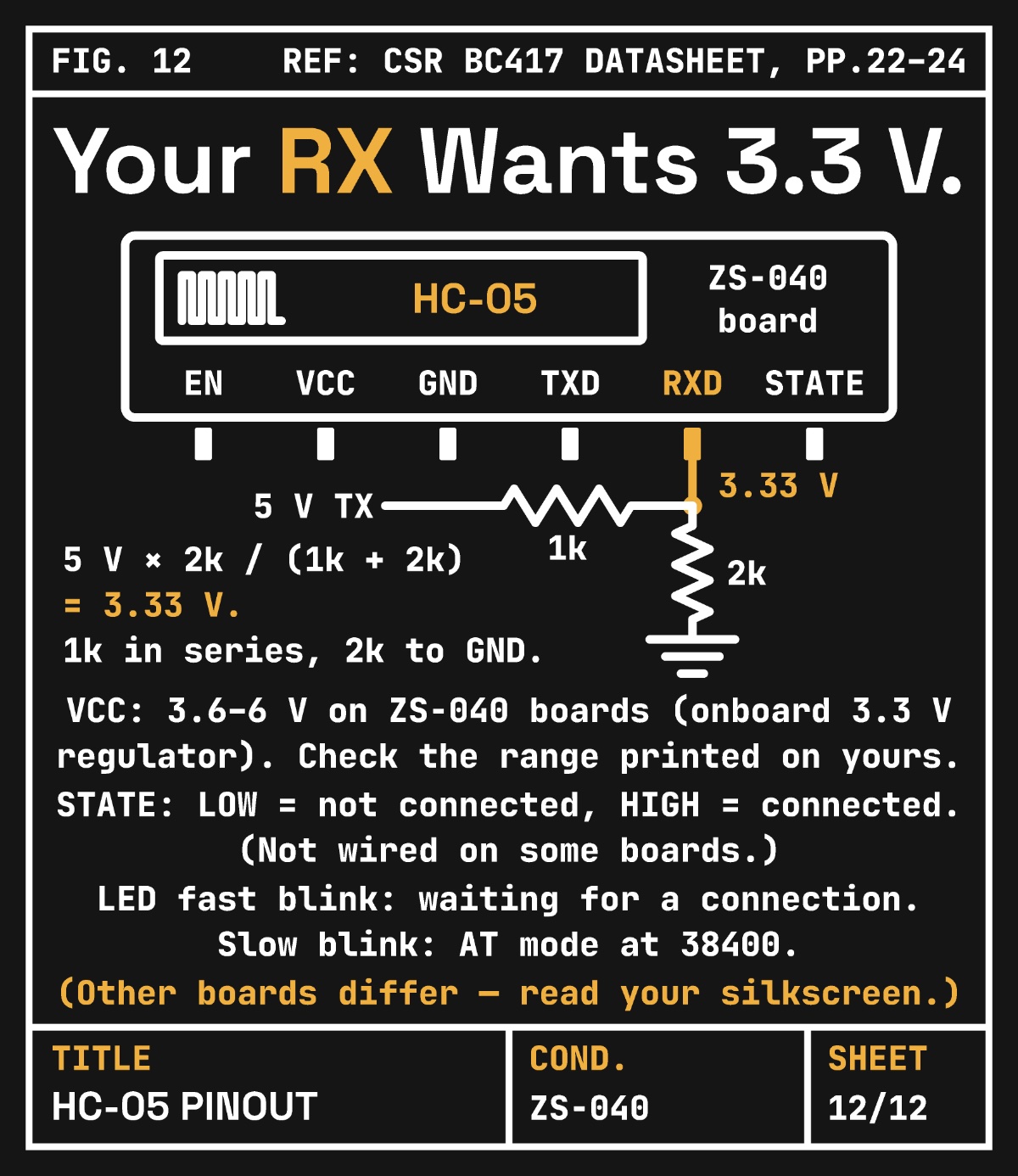

A nerdy electronics tee: the HC-05 ZS-040 breakout pinout, the 1k / 2k divider that turns a 5 V TX into 3.33 V for its RX, the STATE pin and the LED blinks.
from $27
Plus shipping, shown at checkout. US sales tax included where it applies.
Print: 11.3 × 13.2 in, front only.
Checkout is run by Fourthwall, who print the shirt to order, ship it and handle returns and sales tax. You’ll pay on shop.troniction.com.
On the shirt
What it teaches
- The HC-05's radio is a 3.3 V part. Its RXD input is rated to 3.3 V plus 0.4 V, so a 5 V signal from a 5 V board is over the limit.

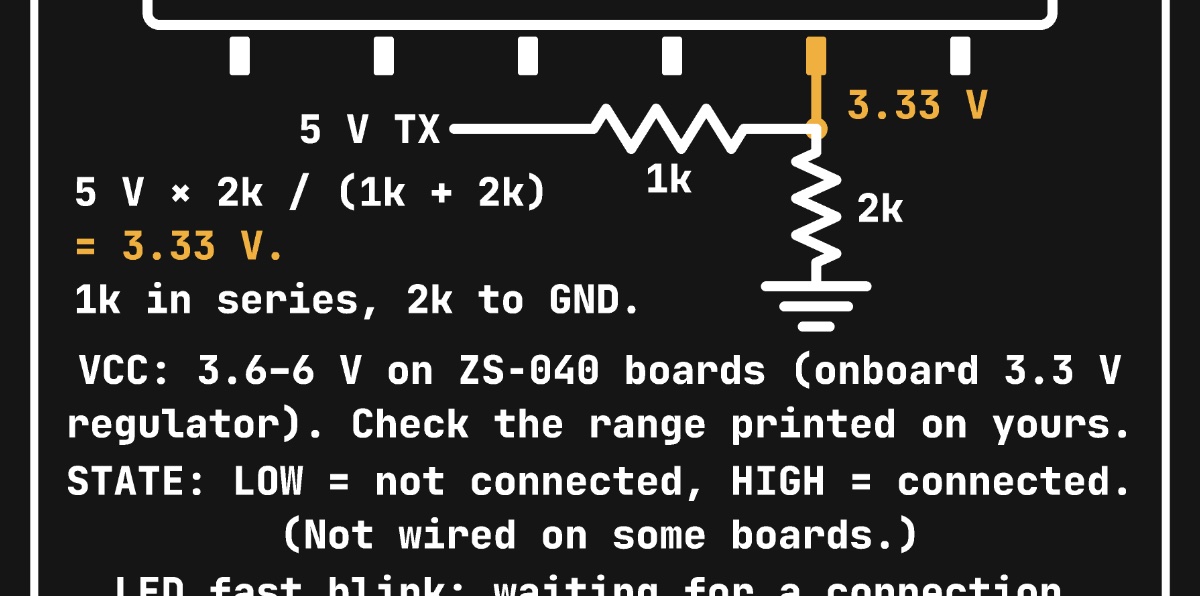

- A 1 kΩ resistor in series and a 2 kΩ resistor to ground turn 5 V into 5 × 2 / (1 + 2) = 3.33 V, comfortably inside what RXD reads as high.
- On the common ZS-040 board the pins read STATE · RXD · TXD · GND · VCC · EN, and the board itself is printed "Power: 3.6V–6V · LEVEL: 3.3V". Other breakouts use other orders, so read your silkscreen.
- STATE is low when nothing is connected and high when a device is connected (some boards don't wire it).
- A fast-blinking LED means the module is waiting for a connection; a slow blink means it is in AT command mode, at 38400 baud.
Sources
Where every fact comes from
The shirt
Fabric, fit and printing
Bella+Canvas 3001 unisex tee: combed and ring-spun cotton (heather colours are a cotton/poly blend), printed direct-to-garment and made to order. Care: wash cold, inside out; tumble dry low; don't iron the print.
