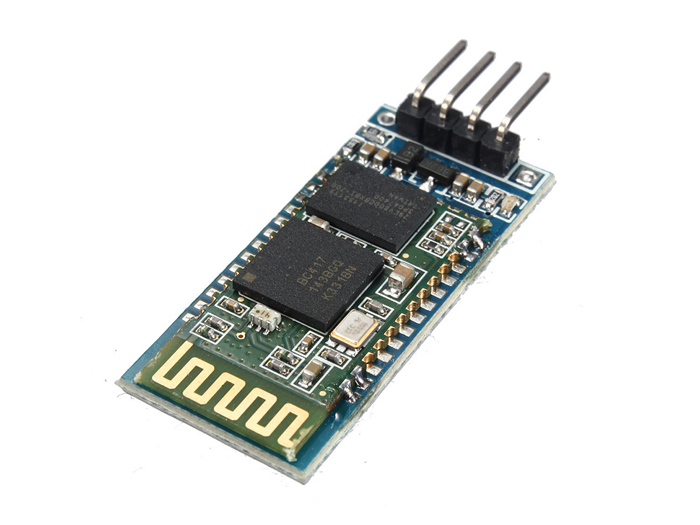

Bluetooth Module HC-06

HC-06 Arduino Car Bluetooth Module 3D

Troniction Car Remote Control

Wireless Car Control. HC-06 Module recieves signals from your phone via Bluetooth. Connect HC-06 Bluetooth module to Arduino to recieve control signals from your phone.

Connect HC-06 to Car

Technical Specifications

  • Bluetooth protocol: Bluetooth V2.0 protocol standard
  • Power Level: Class2(+6dBm)
  • Band: 2.40GHz—2.48GHz, ISM Band
  • Receiver sensitivity: -85dBm
  • USB protocol: USB v1.1/2.0
  • Modulation mode: Gauss frequency Shift Keying
  • Safety feature: Authentication and encryption
  • Operating voltage range:+3.3V to +6V
  • Operating temperature range: -20ºC to +55ºC
  • Operating Current: 40mA

Download Bluetooth Module Datasheet

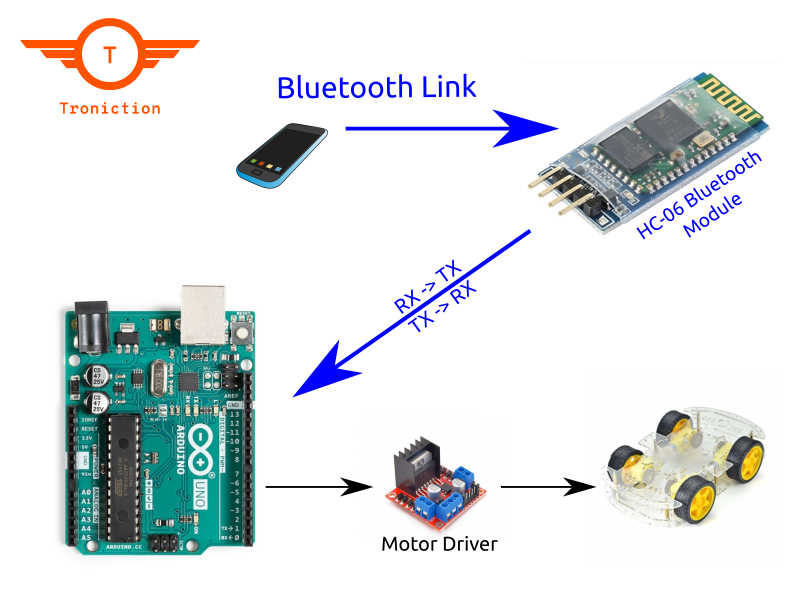

Bluetooth Module HC-06 Connection Diagram
